ATC SCM105AC Pro Centre Channel Monitor
Reference 3 way active mid field loudspeaker for immersive and surround studios
The SCM105AC Pro is a purpose built centre channel monitor engineered for professional control rooms where accuracy, power and physical practicality matter equally. Designed by ATC Loudspeakers, it delivers the same uncompromising sonic performance found in ATC’s larger mid field systems, optimised in a lower height enclosure that integrates seamlessly beneath screens and consoles.
Based on the acclaimed SCM110A platform, the SCM105AC Pro is tailored specifically for centre channel duties in high end surround and immersive environments. It is an ideal match for ATC SCM50, SCM100 and SCM110A Pro monitors, making it perfectly suited to 5.1, 7.1 and Dolby Atmos music and post production rooms where tonal consistency and precise dialogue localisation are critical.
At its core is ATC’s proven three way active design with a symmetrical driver layout for controlled dispersion and stable imaging. Dual 9 inch Super Linear bass drivers provide authoritative low frequency extension with exceptionally low distortion, while the legendary 3 inch soft dome midrange reproduces dialogue, vocals and effects with remarkable clarity and realism. A 1 inch soft dome tweeter completes the system with smooth, extended high frequencies that remain accurate even at high playback levels.
Powering each driver is ATC’s proprietary Amp Pack, featuring precision active crossovers and discrete MOSFET Class A B amplification. This fully active approach ensures optimal driver control, wide dynamic range and consistent performance across long sessions, whether you are mixing feature films, broadcast content or immersive music projects.
The result is a centre channel monitor that delivers effortless output, outstanding transient response and absolute tonal accuracy, allowing critical decisions to translate reliably to any playback environment. For installations requiring alternative mounting solutions, an in wall version with remote amplification is also available under the SCM105AiWC Pro designation.
Key highlights
-
Dedicated centre channel design with reduced cabinet height for modern control rooms
-
Perfect tonal match with ATC Pro mid field monitors in surround and immersive systems
-
Three way active architecture with precision Linkwitz Riley crossovers
-
Dual Super Linear bass drivers for deep, controlled low frequencies
-
Renowned ATC soft dome midrange for exceptional speech intelligibility
-
Discrete MOSFET amplification for power, headroom and long term reliability
The ATC SCM105AC Pro is the reference choice for studios that demand absolute confidence from their centre channel, combining installation friendly dimensions with the uncompromising sound quality ATC is known for worldwide.
Technical Specifications
- Drive Units: Bass: 2 x SB75-234SL 16Ω, Mid: 1 x SM75-150S 16Ω, HF: 1 x SH25-76S 6Ω
- Low Frequency Cut-off: 30Hz (-6dB, anechoic)
- High Frequency Cut-off: 25kHz (-6dB)
- Amplitude Linearity: 50Hz – 17kHz (+/- 2dB)
- Matched Response: +/-0.5dB
- Crossover Points: 380Hz & 3.5kHz
- MaxSPL: 115dB continuous, 121dB peak (per pair, IEC Weighted Pink Noise, 1m, anechoic)
- System Sensitivity: 85dBC ref. -20dBu (per single unit, 1m, pink noise, bass boost 0dB, sensitivity 2.2dBu/1V)

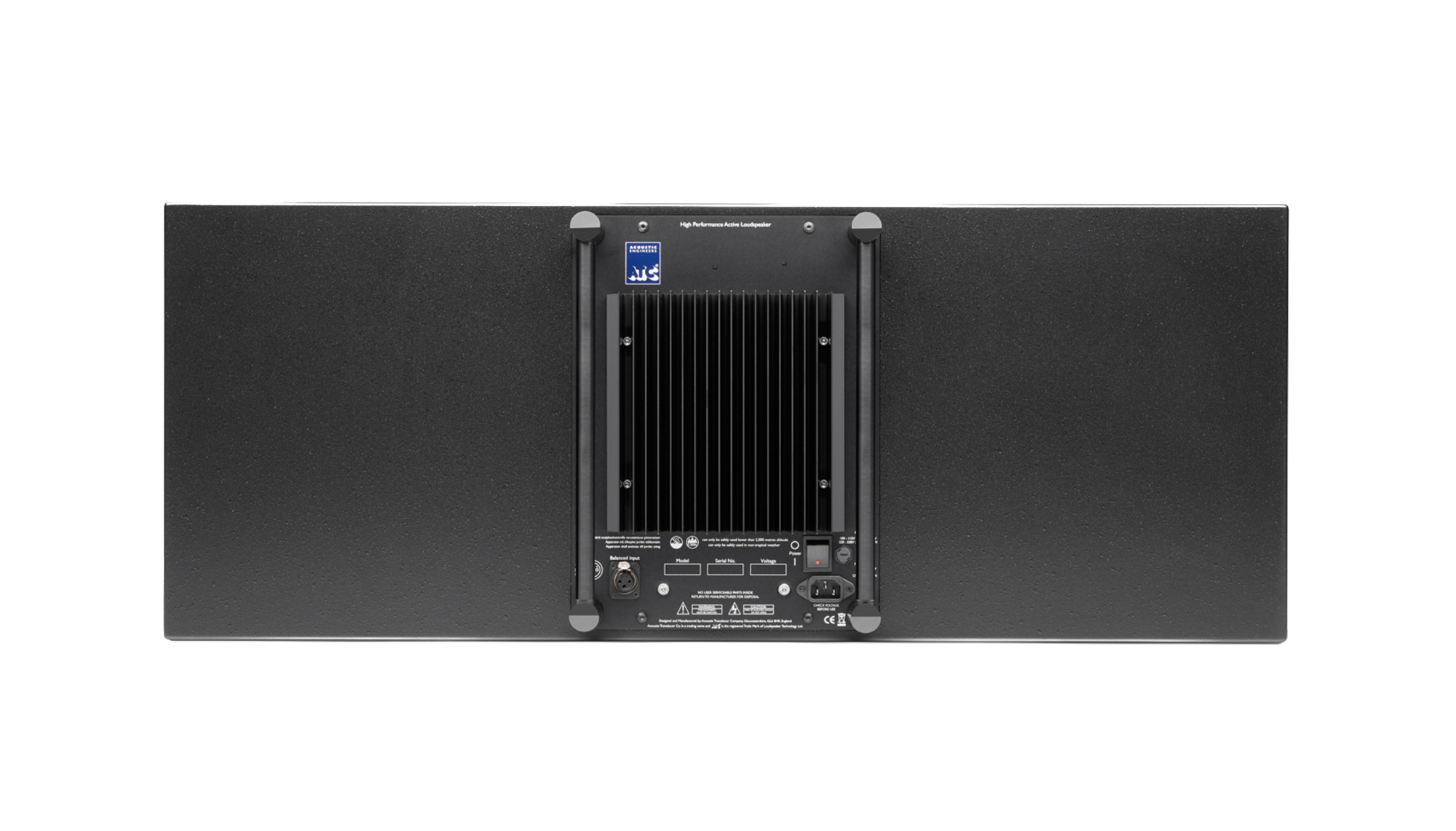

- Balanced Input: 1 x Rear Panel Mounted Female XLR, pin 2 hot
- Input Impedance: 20kΩ (differential)
- Input CMRR: > 82dB (10kHz)
- Input Sensitivity: 2.2dBu/1Vrms for full power
- Input Sensitivity Control: Continuously Variable from 2.2dBu – 8.2dBu / 1Vrms – 2Vrms (-6dB)
- Bass Boost Control: Continuously variable from 0dB to +6dB
- Crossover Filters: 4th Order Linkwitz-Riley
- Frequency Response: < 2Hz to > 200kHz (-3dB)
- Amplifier type: Grounded Source MOSFET based Class A/B, convection cooled
- Output Power: Bass 200W (8Ω), Mid 100W (16Ω), HF 50W (6Ω)
- THD+N: < 0.003%/-92dB (1kHz, 1dB below rated power, 90kHz BW)
- Limiter: ATC Active FET Momentary Gain Reduction, limiter ‘active’ indicated via front panel LED
- Mains Input: Rear panel mounted, 220-230V or 115V – Factory set
- Power Consumption: Idle 37W /51VA. 1/8th Power 132W/178VA. Full Power 321W/403VA.
- Heat Output: Idle 126 BTU/hr. 1/8th power 366 BTU/hr. Full Power 413BTU/hr.
- Dimensions (W x H x D): 950 x 370 x 580 mm (incl. heat sink)
- Weight: 66.5 kg
