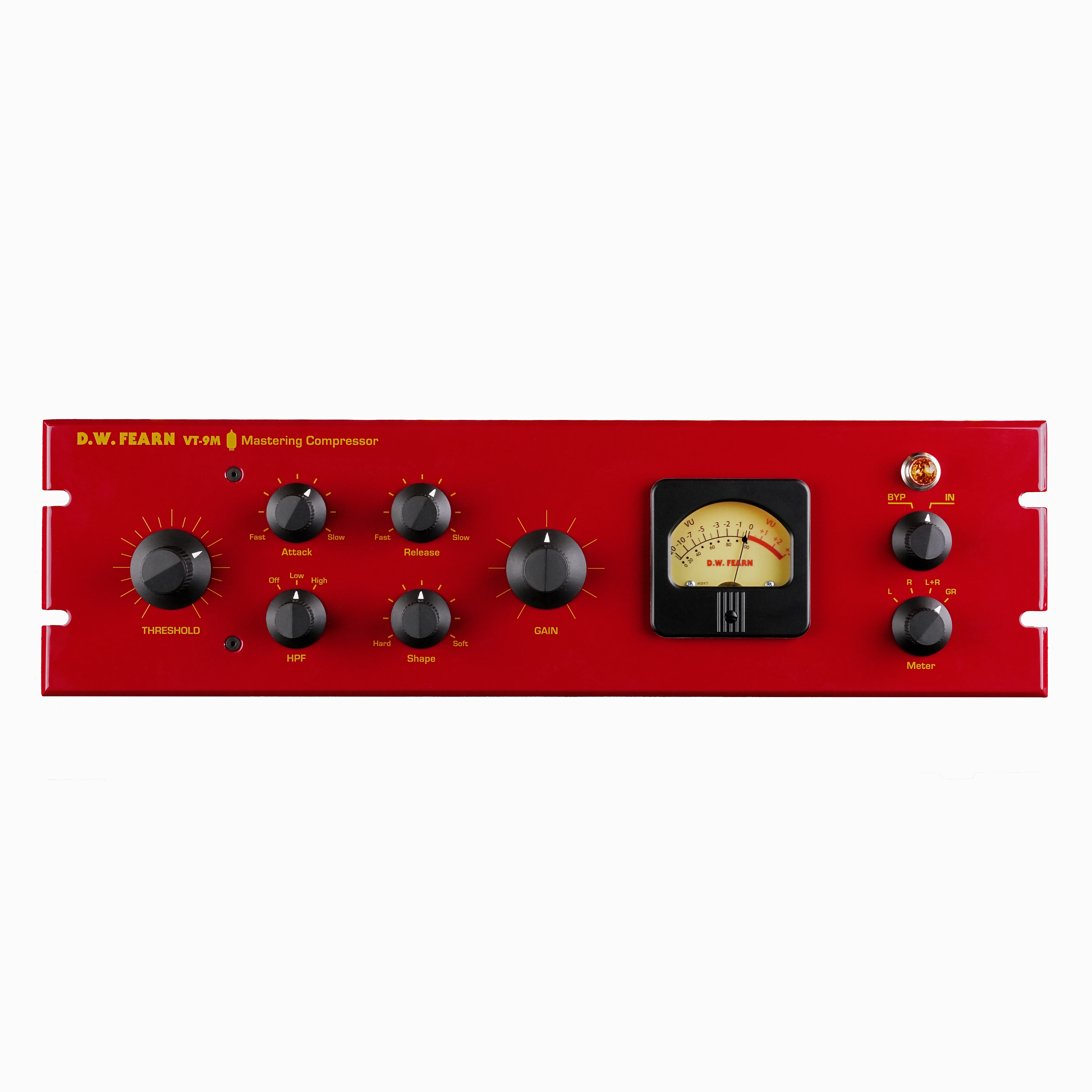

D.W. Fearn VT-9M Stereo Tube Compressor
The D.W. Fearn VT-9M Stereo Tube Compressor is a high-end, all-tube dynamics processor designed for professional mastering, mix bus processing and demanding stereo recording applications. Hand-built in the USA, the VT-9M combines D.W. Fearn's renowned Class A vacuum tube signal path with advanced Pulse Width Modulation (PWM) gain control, delivering exceptionally smooth compression while maintaining clarity, depth and stereo image integrity.
At the heart of the VT-9M are eight hand-selected 6072A dual-triode vacuum tubes, providing the harmonic richness, dimensionality and generous headroom associated with D.W. Fearn's classic tube designs. Unlike conventional tube compressors, the VT-9M uses modern PWM technology to control gain reduction, allowing precise dynamics processing without sacrificing the musical character of its all-tube audio path.
Designed specifically for stereo work, the VT-9M offers precise gain reduction tracking between its two channels to preserve the stability and balance of the stereo image. From subtle mastering compression and gentle mix bus levelling to more assertive peak control, the VT-9M is designed to process complex material while retaining detail, transient definition and low-frequency authority.
Class A All-Tube Signal Path
The VT-9M features a pure Class A triode audio path built around eight carefully selected 6072A vacuum tubes. This topology provides exceptional headroom and extremely low distortion while adding the depth, texture and harmonic character for which D.W. Fearn equipment is known.
The result is compression that can remain remarkably transparent at gentle settings while still imparting the unmistakable dimensional quality of a premium tube signal path.
Advanced PWM Compression
Gain reduction is controlled using a sophisticated Pulse Width Modulation system. This allows the VT-9M to combine the sonic character of an all-tube audio circuit with precise, modern control over compression.
PWM gain control helps provide smooth and predictable dynamics processing across full mixes, mastering chains, stereo stems and demanding tracking applications.
True Stereo Operation
The D.W. Fearn VT-9M is designed from the ground up for stereo processing. Its two channels provide accurately linked gain reduction behaviour, helping maintain consistent stereo positioning and image stability even when processing complex material.
This makes the VT-9M particularly suitable for:
-
Stereo mix bus compression
-
Mastering
-
Stereo stem processing
-
Drum and instrument buses
-
High-end stereo recording chains
-
Tracking where precise stereo dynamics control is required
Adjustable Compression Shape
The Shape control allows the character of the compression curve to be adjusted according to the source material.
Softer settings provide gentle, transparent levelling suitable for mastering and subtle bus compression, while harder settings deliver increasingly assertive dynamics control when tighter peak management is required.
This gives the VT-9M considerably more flexibility than a compressor built around a single fixed compression characteristic.
Sidechain High-Pass Filter
A built-in sidechain high-pass filter provides Off, Low and High settings.
By reducing the compressor's sensitivity to low-frequency energy, the HPF can help prevent bass-heavy material such as kick drums and bass instruments from producing excessive gain reduction or unwanted pumping.
This is particularly useful when using the VT-9M across complete mixes or stereo buses where maintaining low-frequency weight is critical.
Transformer-Balanced Inputs and Outputs
The VT-9M uses hand-selected US-made input bridging transformers together with custom-wound output transformers.
The transformer-balanced architecture provides professional studio interfacing while contributing to the unit's distinctive analog character. The input impedance of 32 kΩ makes the VT-9M suitable for bridging modern professional audio sources without unnecessarily loading the preceding equipment.
Precision VU Metering
The VT-9M features true analog VU metering conforming to ASA Standard C16.5-1954.
Metering can be switched between:
-
Left output level
-
Right output level
-
L+R summed output
-
Gain Reduction
This provides clear visual feedback during both mastering and recording applications.
True Bypass
A true bypass circuit allows accurate A/B comparison between the processed and unprocessed signal.
When bypassed, the VT-9M is removed from the signal path, allowing engineers to evaluate compression decisions without additional coloration or insertion loss influencing the comparison.
Hand-Built in the USA
The D.W. Fearn VT-9M is a genuine boutique analog processor rather than a mass-produced studio product. Each unit is individually assembled, wired, burned in and tested by hand in the USA before leaving the D.W. Fearn workshop.
The VT-9M is backed by a limited 7-year warranty, with vacuum tubes covered for 90 days.
Technical Specifications
Type: Stereo Class A vacuum tube compressor
Audio Circuit: Class A triode vacuum tube signal path
Vacuum Tubes: 8 × 6072A dual triodes
Gain Control: Pulse Width Modulation (PWM)
Operation: True stereo with precision-linked gain reduction
Gain Reduction Range: 0 to 20 dB
Sidechain Filter: Off / Low / High
Compression Curve: Adjustable Shape control from softer to harder compression characteristics
Input: Transformer balanced
Input Impedance: 32 kΩ bridging
Output: Low-impedance transformer balanced
Output Impedance: 115 Ω
Maximum Output Level: +22 dBm into a bridging balanced or unbalanced input
Frequency Response:
±0.2 dB, 20 Hz to 20 kHz
±0.5 dB, 11 Hz to 28 kHz
-3 dB at 0.5 Hz and 65 kHz
THD + Noise: <0.05% from 20 Hz to 20 kHz
Signal-to-Noise Ratio: 78 dB minimum
Metering: True VU metering conforming to ASA Standard C16.5-1954
Meter Modes: Left Output / Right Output / L+R / Gain Reduction
Bypass: True bypass
Power Requirements: 115 or 230 VAC, 50/60 Hz
Power Consumption: 85 W
Manufacturing: Hand-built and tested in the USA
Warranty: Limited 7-year warranty; 90 days on vacuum tubes
