The Chandler Limited EMI Abbey Road Studios ‘TG Microphone’ is a solid-state large diaphragm condenser microphone. Continuing the rich tradition of innovation, the TG Microphone is unique in its feature-set and as the name implies, the sound is TG.
The TG Microphone’s unique on-board EMI ‘Tape Equalizer’ section combined with its ‘Dual Tone System’, dedicated PSU and other features create an extremely flexible microphone capable of rivaling scenarios where the FET47, C414, U87, and U47 traditionally have found favor.
The Tape Equalizer is adapted from the NAB/IEC tape equalizer facility found on vintage EMI TG mastering desks, and applied to great effect in the TG Microphone. Historically used to compensate for tapes played back on machines of the opposite standard, the repurposed tape equalizer allows the engineer to sculpt the sound at the source in lieu of external processing.
The microphones shaping possibilities are further expanded when the Tape Equalizer is combined with the selectable 90/50 Hz Low-Cut filter.
The ‘Dual Tone System’ modifies TG Microphone’s input and extends its flexibility to capture a wide range of sources. System ‘A’ is TG mid forward, while the alternate ‘B’ voicing takes extreme SPLs and is at home wherever a FET47 would be the choice.
The TG Microphone relies on a dedicated power supply (PSU). The use of a dedicated PSU, rather than 48V phantom power is integral to the TG Microphone’s larger than solid-state sound.
Other features include: cardioid and omni patterns, and 10 dB pad.

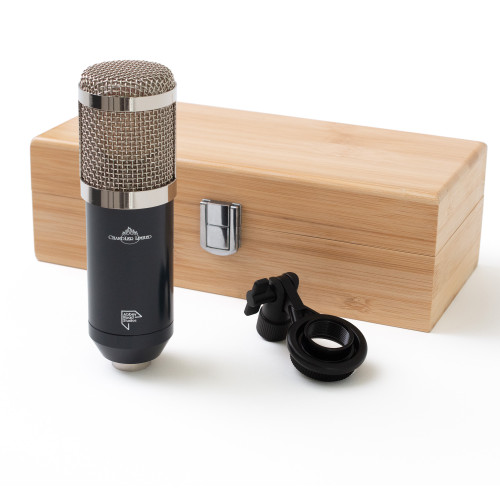

Shockmount, 25’ Mogami 4-pin mic cable, dedicated PSU, and wooden case are included.
TG HISTORY
In 1968 EMI and Abbey Road Studios changed their recording and mixing consoles from the valve-driven REDD to the transistorized TG12345 desk. The remarkable sonic quality of the new EMI TG12345 transistor recording console with expanded EQ, and for the first time ever, a compressor/limiter on every channel would forever leave its mark on the Beatles “Abbey Road” and Pink Floyd’s “Dark Side of the Moon” albums, as well as recordings by Paul McCartney, John Lennon, George Harrison, and the Rolling Stones. Retired from service in 1983, the TG desks were built by EMI for their studios and were never commercially available.
Features
- Large-diaphragm Condenser Microphone
- Solid-state TG circuit design
- Legendary TG sound
- Licensed as Offical EMI/Abbey Road Studios Equipment
- Included EMI NAB/IEC tape equalizer
- Flexible ‘Dual Tone System’ for capturing a wide range of sources
- Switchable 90/50 Hz Low-Cut filter
- 10 dB PAD
- Switchable Cardioid/Omni polar patterns
- Includes outboard power supply, high-quality spider-type shockmount, a 25-foot Mogami mic cable and wooden case
- Handcrafed in the USA
Technical Specifications
- Microphone Type: Large diaphragm condenser
- Transducer Type: Gold membran, custom spec.
- Circuit Type: TG, solid-sate
- Dual Tone System: A/B voicings
- Tape Equalizer: TG, 5 settings
- Low Cut Filter: Switchable - Out, 90 Hz, 50 Hz
- Patterns: Cardioid, Omni
- Pad: 10 dB, switchable
- Impedance: 200 Ohms
- Accessories Included: Shockmount, Case, PSU, 25’ 4 Pin Mogami Mic Cable
