Cranborne Audio 500 Series Bundle

Cranborne Audio Camden 500, Carnaby 500 & Brick Lane 500 Bundle

The Cranborne Audio 500 Series Bundle combines three of Cranborne Audio's analogue processing modules in one package: the Camden 500 microphone preamp and Mojo signal processor, Carnaby 500 HarmonicEQ and Brick Lane 500 Modal PWM Compressor.

Together, the three modules provide microphone, line and Hi-Z amplification, analogue harmonic saturation, 3-band equalisation and flexible analogue dynamics processing within the 500 Series format.

From transparent recording through harmonic enhancement, EQ and compression, the bundle brings together three different Cranborne Audio technologies: Camden with Mojo, Carnaby HarmonicEQ and Brick Lane Modal PWM Compression.

Cranborne Audio Camden 500 Mic Preamp

The Cranborne Audio Camden 500 is a fully discrete, transformerless 500 Series microphone preamp designed around Cranborne Audio's custom Camden preamp topology.

Mic, line and Hi-Z input modes allow Camden 500 to accommodate microphones, instruments and line-level sources, while up to 68 dB of microphone gain provides substantial amplification for a wide range of recording applications.

With Mojo bypassed, Camden 500 is designed for extremely low noise and distortion with excellent frequency and phase linearity.

When additional analogue character is required, the variable Mojo circuit provides two distinct saturation modes.

THUMP introduces harmonic enhancement focused towards the low frequencies.

CREAM increases odd and even harmonic content while adding the type of transient behaviour associated with transformer and valve-based equipment.

Mojo can be continuously adjusted or completely bypassed, allowing Camden 500 to move between transparent amplification and more pronounced analogue saturation.

Camden 500 Key Features

• Fully discrete, transformerless 500 Series microphone preamp

• Cranborne Audio Camden preamp topology

• Mic, line and Hi-Z input modes

• Up to 68 dB microphone gain

• 12-position stepped gain control

• Extremely low noise and distortion

• Variable Mojo analogue saturation

• THUMP saturation mode

• CREAM saturation mode

• True bypass for Mojo

• 80 Hz high-pass filter

• Suitable for microphone recording, instrument DI and line-level analogue saturation

• Designed and engineered in the United Kingdom

Cranborne Audio Carnaby 500 HarmonicEQ

The Cranborne Audio Carnaby 500 is a 3-band parametric analogue EQ for the 500 Series format featuring Cranborne Audio's HarmonicEQ technology.

HarmonicEQ uses analogue harmonic saturation as part of the boost and cut process. This allows the Carnaby 500 to alter frequency content while simultaneously introducing harmonics into sources, stems and mixes.

Three interactive bands provide separate LO, MID and HI frequency control, with each band using its own harmonic behaviour.

The LO band is a low shelf covering 20 Hz to 420 Hz.

The MID band is a fixed-Q peaking filter covering 200 Hz to 6.2 kHz.

The HI band is a high shelf covering 5 kHz to 25 kHz.

Input and Output controls provide ±20 dB of level adjustment. Driving the input harder increases the amount of harmonic saturation and changes the EQ response, while reducing the level allows cleaner EQ processing.

Carnaby 500 Key Features

• 3-band analogue HarmonicEQ for the 500 Series format

• Harmonic saturation integrated into EQ boost and cut

• Interactive LO, MID and HI bands

• LO shelf from 20 Hz to 420 Hz

• MID peaking filter from 200 Hz to 6.2 kHz

• HI shelf from 5 kHz to 25 kHz

• Sweepable frequency controls

• ±20 dB Input and Output Level controls

• Dynamic harmonic and EQ response

• LO, MID and HI saturation LED indicators

• Stepped front-panel controls

• True bypass

• OptoSync stereo linking

• Automatic circuit calibration for stereo matching

Cranborne Audio Brick Lane 500 Modal PWM Compressor

The Cranborne Audio Brick Lane 500 is a 500 Series analogue PWM compressor featuring Cranborne Audio's Modal PWM Compression architecture and variable Stress harmonic processing.

Rather than providing a single compression characteristic, Brick Lane 500 offers six operating modes that alter compression behaviour, ratio, knee and envelope characteristics.

The six modes are VELVET, FLOAT, SMASH, TAME, GLUE and POLISH.

VELVET provides Vari-Mu-style compression behaviour with tube-inspired harmonic character.

FLOAT provides Opto-inspired dynamics with gentle compression ballistics.

SMASH provides FET-style transient control and aggressive gain reduction.

TAME is designed for ultra-fast and transparent transient management.

GLUE provides gentler bus-style compression.

POLISH provides mastering-style limiting and incorporates Cranborne Audio's Analogue Lookahead technology.

Threshold, Attack and Release controls provide further dynamics adjustment, while selectable 60 Hz, 100 Hz and 200 Hz sidechain high-pass filters help control how low-frequency content interacts with the compressor.

Stress Harmonic Processing

Brick Lane 500's variable Stress control adds harmonically enriched compression effects.

Its behaviour changes according to the selected compression mode, allowing harmonic coloration and saturation to become part of the dynamics processing rather than operating as a separate effect.

Input and Output/Make-up Gain provide ±20 dB of adjustment, allowing the level feeding the compressor and saturation circuitry to be tailored to the source.

Brick Lane 500 Key Features

• 500 Series analogue PWM compressor

• Cranborne Audio Modal PWM Compression architecture

• Pure analogue PWM signal processing

• Six compression modes

• VELVET, FLOAT, SMASH, TAME, GLUE and POLISH

• Variable Stress harmonic processing

• Threshold control

• Variable-range Attack and Release controls

• ±20 dB Input and Output/Make-up Gain

• Sidechain HPF with OFF, 60 Hz, 100 Hz and 200 Hz settings

• 12-segment level meter

• 12-segment gain-reduction meter

• Analogue Lookahead technology in POLISH mode

• OptoSync stereo linking

• Automatic circuit calibration for stereo matching

• True bypass

• Stepped front-panel controls

Three Cranborne Audio Analogue Processors in One Bundle

This bundle brings together three distinct stages of analogue processing within the 500 Series format.

Camden 500 provides the microphone, line and instrument preamplification stage with optional Mojo harmonic saturation.

Carnaby 500 provides 3-band HarmonicEQ for frequency shaping and harmonic enhancement.

Brick Lane 500 provides Modal PWM dynamics processing with six compression modes and variable Stress harmonic processing.

The three modules can therefore be used individually throughout a recording and mixing setup or combined as a preamp, EQ and compressor signal chain.

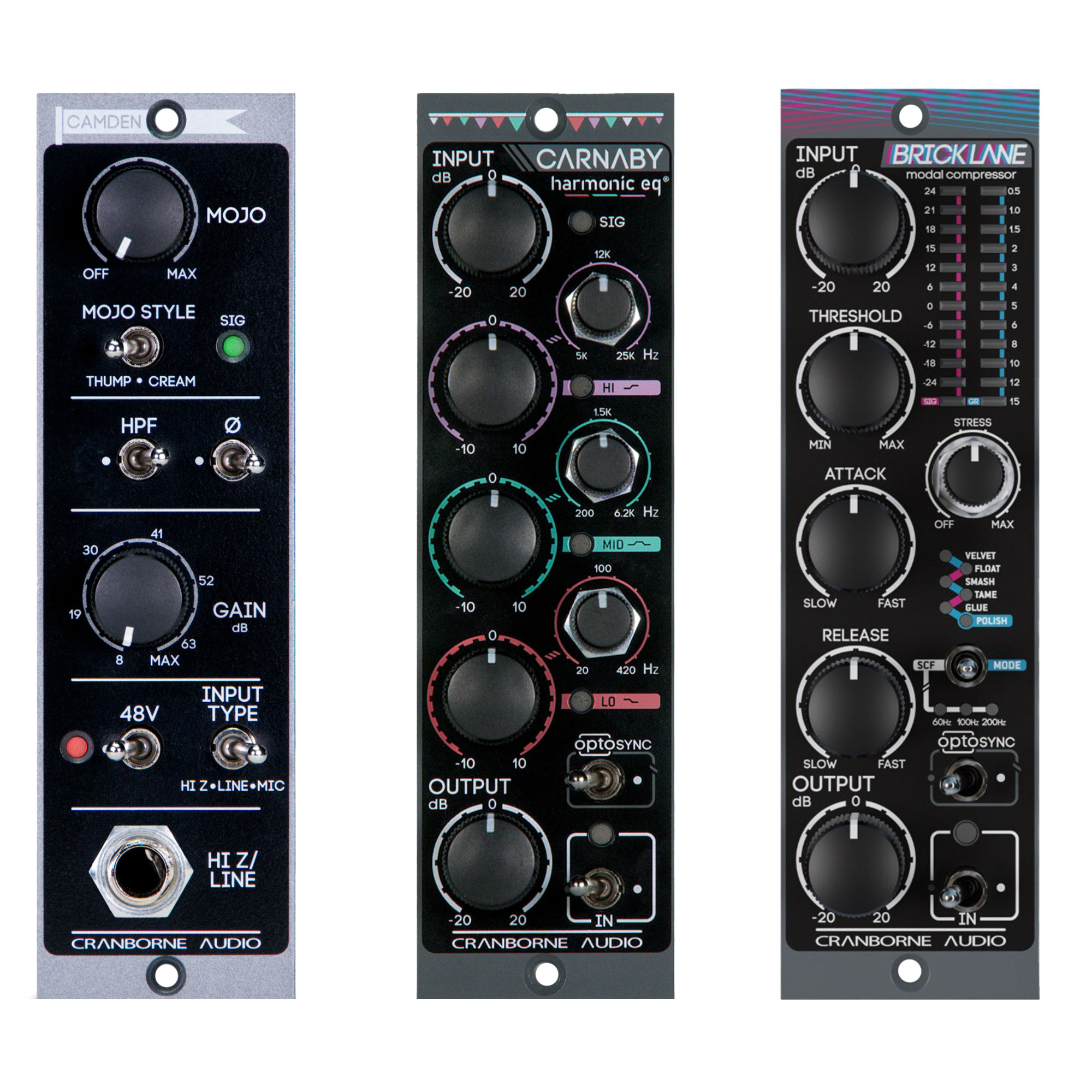

Bundle Includes

• 1 × Cranborne Audio Camden 500 Mic Preamp & Mojo Signal Processor

• 1 × Cranborne Audio Carnaby 500 HarmonicEQ

• 1 × Cranborne Audio Brick Lane 500 Modal PWM Compressor

Bundle Highlights

• Three Cranborne Audio 500 Series processors

• Mic, line and Hi-Z preamplification

• Up to 68 dB microphone gain

• Variable Mojo analogue saturation

• THUMP and CREAM saturation modes

• 3-band HarmonicEQ

• Harmonic saturation integrated with EQ processing

• Modal PWM analogue compression

• Six selectable compression modes

• Variable Stress harmonic processing

• Analogue Lookahead technology in Brick Lane POLISH mode

• Stepped front-panel controls

• OptoSync stereo linking on Carnaby 500 and Brick Lane 500

• Designed and engineered by Cranborne Audio in the United Kingdom
