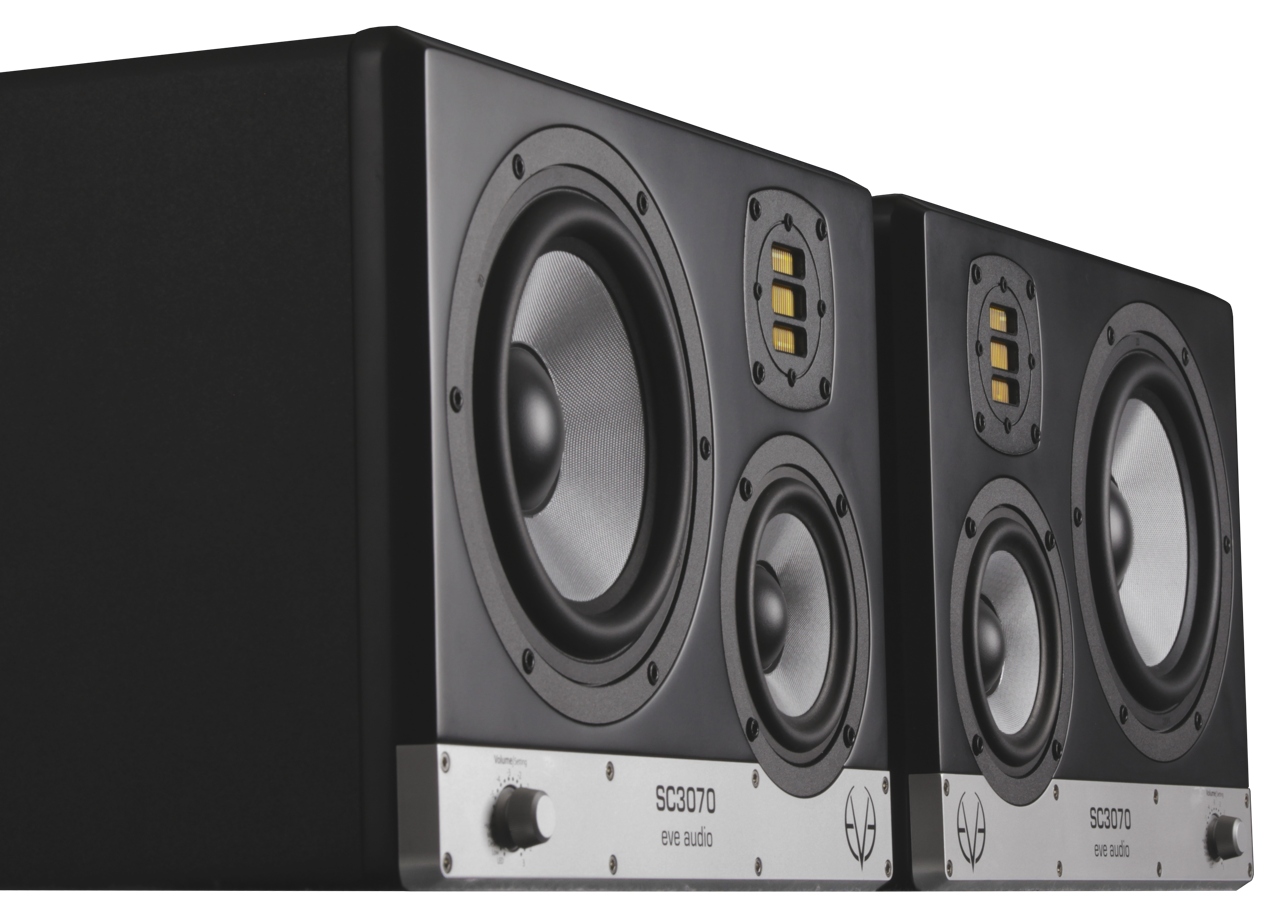

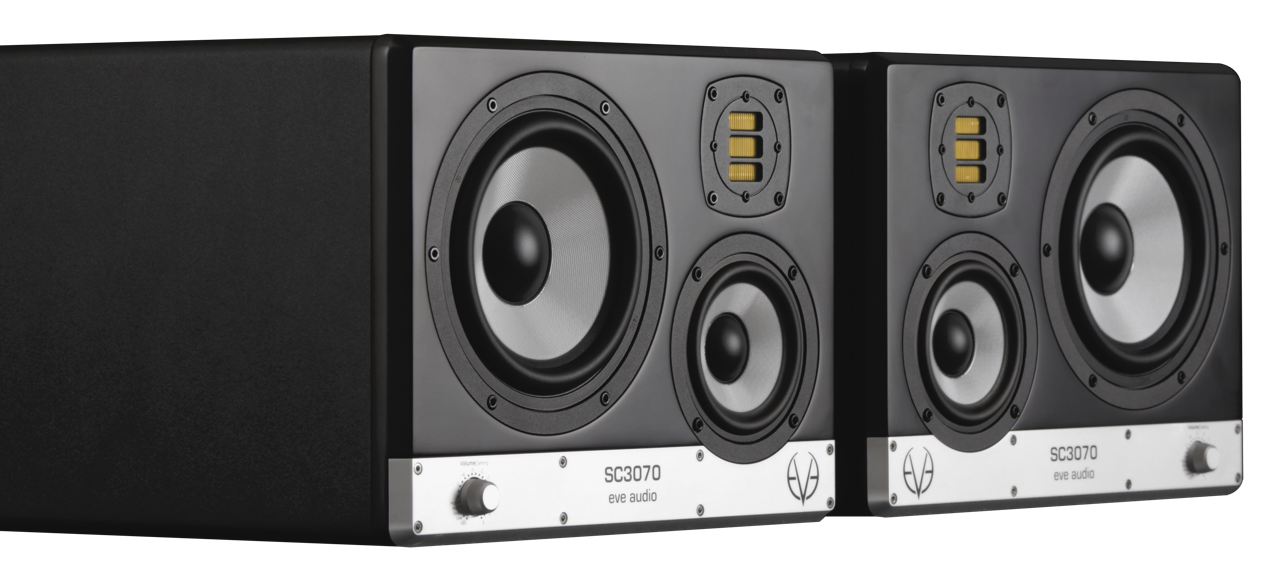

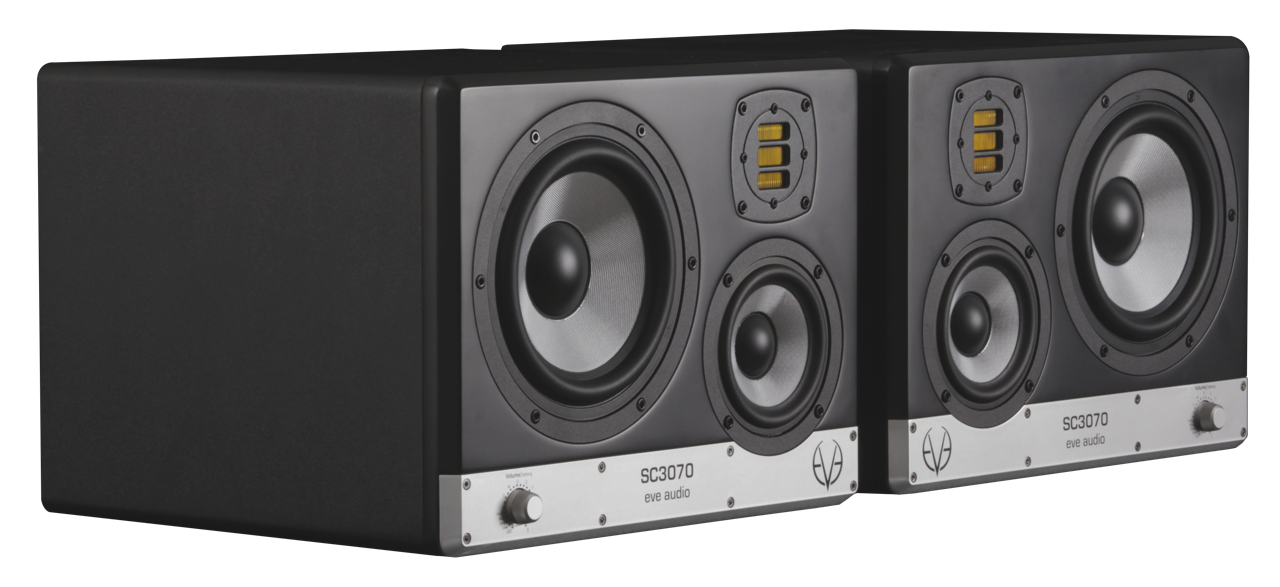

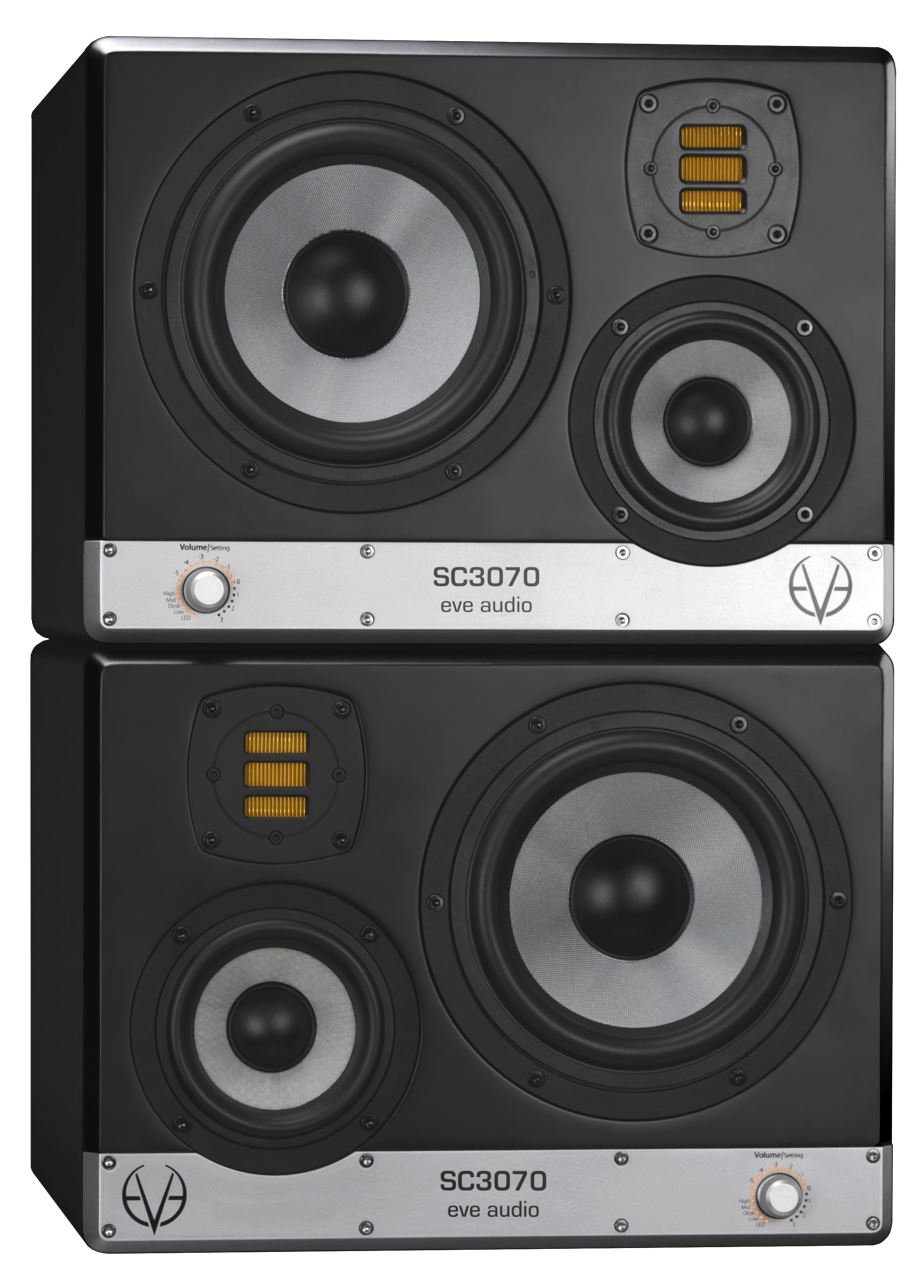

The EVE Audio SC3070 is an active 3-way studio monitor designed as a compact and balanced powercube. It is a high-resolution, tri-amplified midfield monitor optimized for precise midrange and powerful bass response, making it especially well suited for applications where the complete skill set of a fully-fledged 3-way system is required, but where space is at a premium.
The SC3070 expands EVE Audio’s range of three-way speakers with a smaller version that delivers outstanding mid-range reproduction, exceptional balance and low distortion across the entire frequency range in a compact cabinet. It is described by EVE Audio as an ideal solution for recording, mastering and home studios.

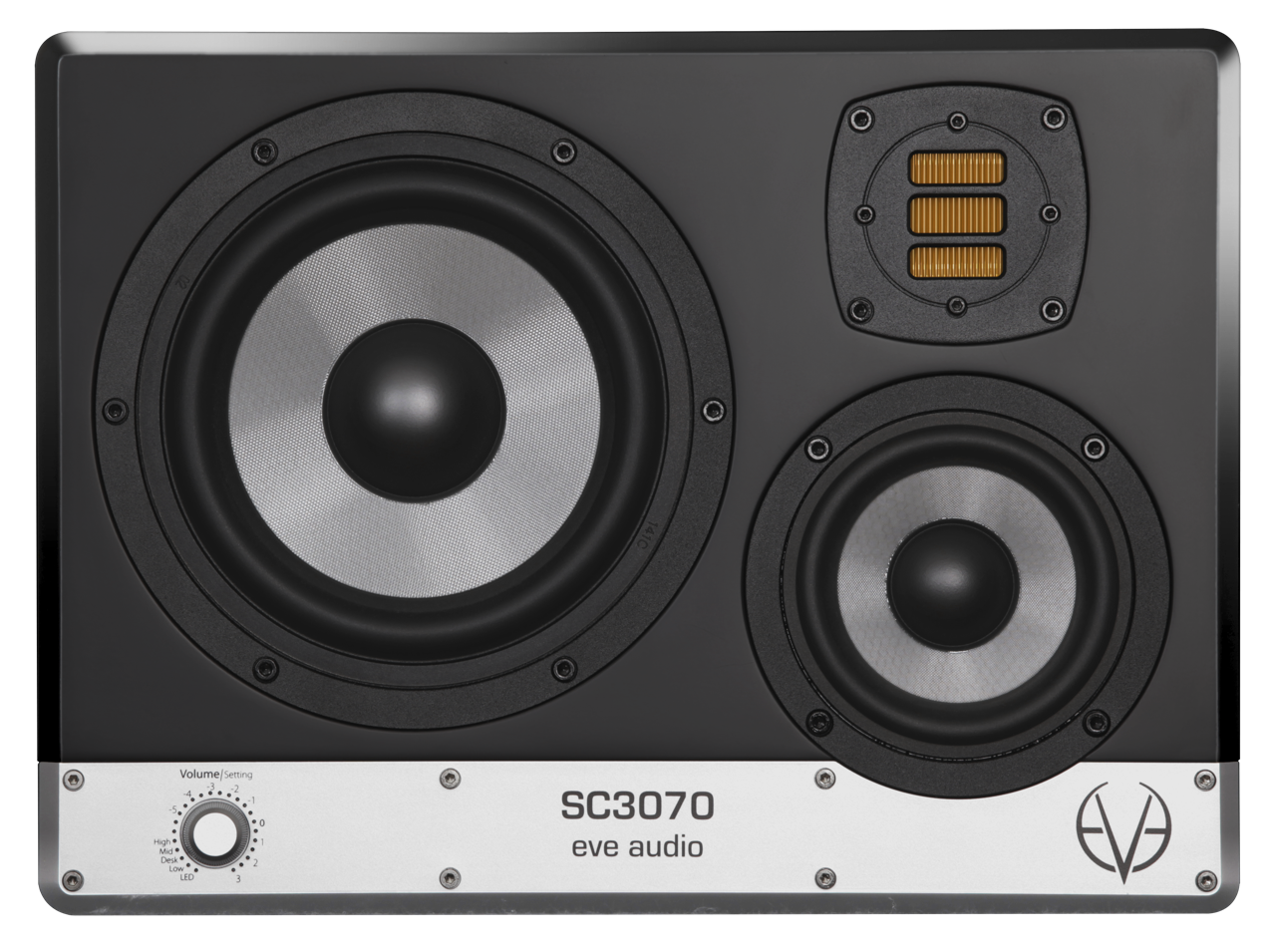

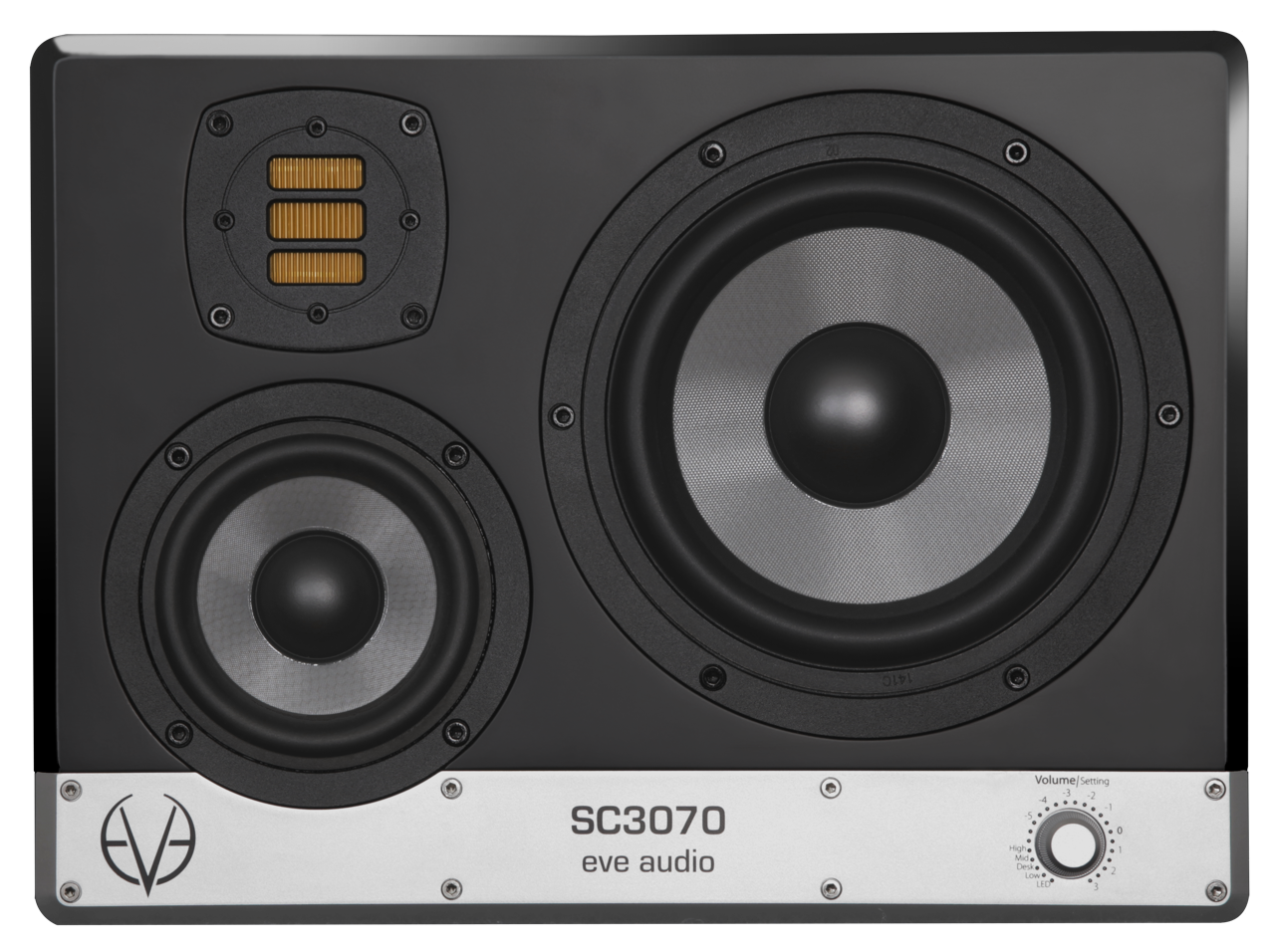

For high and mid frequencies, the SC3070 combines EVE Audio’s own Air Motion Transformer RS3.1 with a specially designed 4 inch midrange driver. This setup provides accurate and un-hyped transmission of high and mid frequencies without being tiring. A 6.5 inch woofer delivers precise and powerful low frequencies, while a 6.5 inch passive radiator supports the overall low-frequency design.
The bass and mid-range drivers use EVE Audio’s SilverCone technology with a low-distortion copper-cap magnet system. The fiberglass-coated membrane material is built in a stable honeycomb structure to support true tonal reproduction, tight dynamic bass and minimal distortion.
The SC3070 features high-resolution DSP electronics for precise room adaptation. A high-quality BurrBrown analog-to-digital converter converts the analog input signal supplied via RCA or XLR at 24-bit / 192 kHz. The DSP provides latency-free filtering while protecting the tweeter and woofers against overload across the entire frequency range.
Monitor settings can be adjusted directly from the front rotary/pressure encoder, the SMART-knob with rotating LED ring. The SMART-knob controls volume, low shelf, mid EQ and high shelf filters, with all settings shown on the LED ring. LED brightness can be adjusted for dark studios or video applications.
The SC3070 also includes Parameter Lock, which saves settings even without power, and Safe Fade-In, which slowly increases volume when switching on to help protect ears and equipment. Volume and filter settings can also be independently fixed using rear DIP switches to prevent unauthorized or unintentional changes.

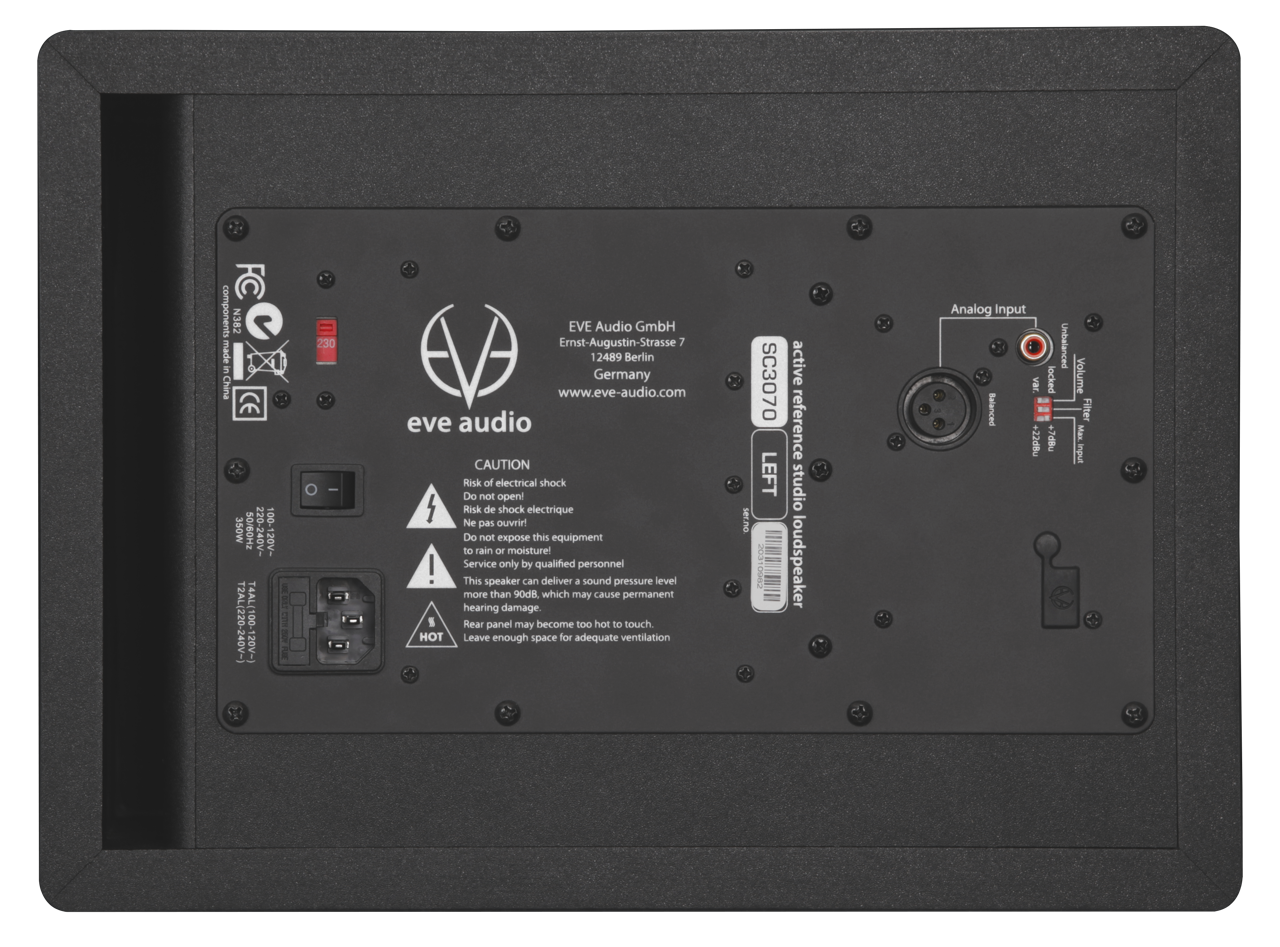

The SC3070 includes analog, optical and USB input selection, RCA input, TOSLink digital optical input, USB Type B input, XLR left and right inputs, XLR LFE input, XLR satellite outputs and XLR LFE output. A remote control is also included.
The EVE Audio SC3070 is also available as an All Black Edition.
Key Features:
Active 3-way studio monitor
Ultra-compact speaker with precise sound image
Compact and balanced powercube design
High-resolution tri-amplified midfield monitor
Optimized for precise midrange and powerful bass response
Designed for recording, mastering and home studios
AMT RS3.1 tweeter
Specially designed 4 inch midrange driver
6.5 inch woofer
6.5 inch passive radiator
35 Hz to 25 kHz frequency range
110 dB max SPL per pair
335 W output power per speaker
50 W tweeter amplifier
100 W mid-driver amplifier
185 W woofer amplifier
320 Hz and 2800 Hz crossover frequencies
SilverCone bass and mid-range drivers
Low-distortion copper-cap magnet system
Fiberglass-coated honeycomb membrane material
High-resolution DSP electronics
BurrBrown 24-bit / 192 kHz analog-to-digital converter
Latency-free DSP filtering
SMART-knob control with rotating LED ring
Low shelf, mid EQ and high shelf filters
Adjustable LED brightness
Parameter Lock
Safe Fade-In
Protection limiter
Analog, optical and USB input selection
RCA, TOSLink, USB Type B and XLR connectivity
Remote control included
Available as All Black Edition
5-year extended warranty available
Technical Specifications:
System: Active 3-way studio monitor
Frequency range: 35 Hz to 25 kHz
Frequency range measurement: -3 dB at 1 m distance
Max SPL: 110 dB per pair
Output power per speaker: 335 W
Tweeter: AMT RS3.1
Output power tweeter: 50 W
Mid-driver: 4 inch
Output power mid-driver: 100 W
Woofer: 6.5 inch
Output power woofer: 185 W
Woofer size: 6.5 inch
Passive radiator: 6.5 inch
Crossover frequency: 320 Hz and 2800 Hz
Protection limiter: Yes
Volume: -∞ to +6 dB
System volume: -∞ to +6 dB
Subwoofer volume: -∞ to +6 dB
High-shelf filter: -5 dB to +3 dB, above 3 kHz
Mid EQ: -3 dB to +3 dB, 1 kHz
Desk filter cut: -5 dB to 0 dB, 160 Hz
Desk filter boost: 0 dB to +3 dB, 80 Hz
Low-shelf filter: -5 dB to +3 dB, below 300 Hz
Position filter: Flat / Desk / Console
Adjustable LED brightness: Yes
Input select: Analog / Optical / USB
Level-lock DIP switch: Yes
Satellite filter DIP switch: 80 Hz high-pass filter
Filter-lock DIP switch: Yes
Input level DIP switch: +7 dBu / +22 dBu
Phase inversion: 0° / 180°
Switchable satellite filter: Flat / 80 Hz
Variable subwoofer filter: 60 to 140 Hz + LFE
Remote control: Included
RCA input: Left / Right
Digital optical input: TOSLink
USB input: Type B
RCA subwoofer out: Yes
XLR input: Left
XLR input: Right
XLR input: LFE
XLR output: Satellite left
XLR output: Satellite right
XLR output: LFE
Dimensions: 340 x 250 x 310 mm
Dimensions: 13.4 x 9.8 x 12.2 inches
Weight: 9.8 kg / 21.6 lb
Standby power consumption: less than 1 W
Maximum power consumption: 220 VA
